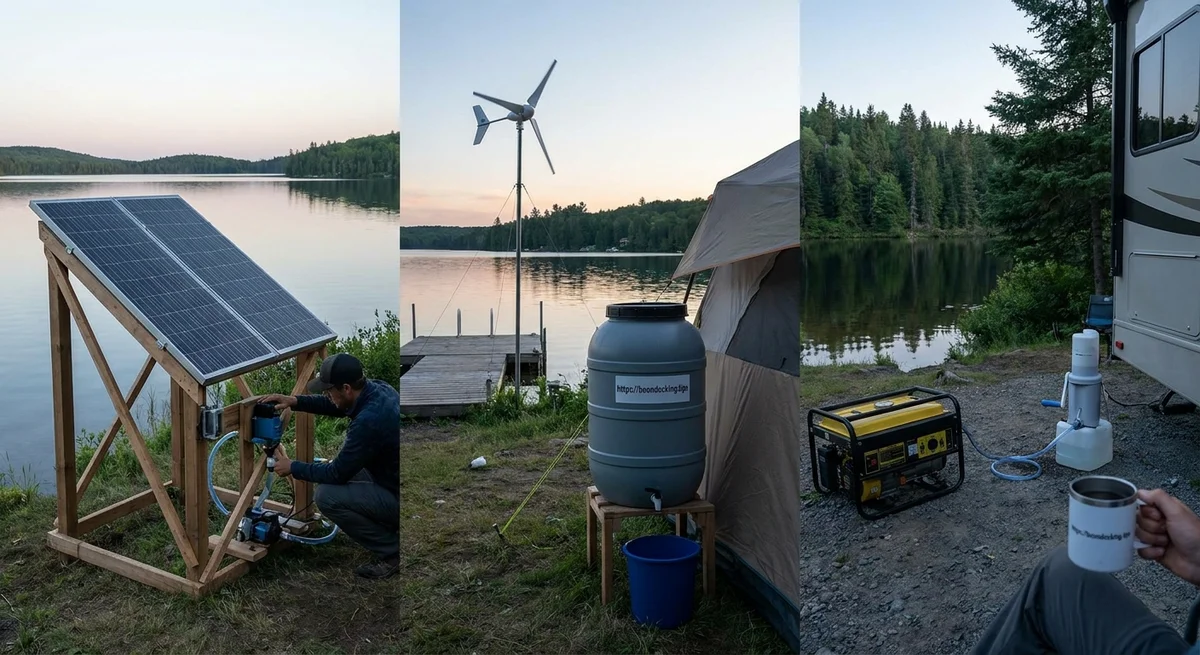

Case Studies: Three Lakes, Three Power/Water Strategies

Introduction

Designing a self-sufficient camp or cabin by a remote lake requires tailoring to local climate. A snowy alpine site, a soggy northern forest lake, and a dusty desert reservoir each demand fundamentally different power and water systems. In these case studies we lay out holistic off-grid plans for each scenario – specifying generation capacity, storage, water treatment, and daily usage – with real numbers. We also highlight likely failure points (panels iced over, mosquito-borne contamination, dust buildup, etc.) and backup strategies. The goal is to show how environment drives system design and to provide a reusable template for other remote sites.

Case Study 1: High-Elevation Alpine Lake

Setting

A small lakeside cabin at ~3,000 m elevation in the Rockies. Winters are long, with snow cover most of the year. Summer days are short at subarctic latitudes. The sun is intense when out (due to thin air with fewer atmospheric losses (www.moserbaersolar.com)) but often low on the horizon or blocked by mountains. Springs and creeks fed by snowmelt provide a reliable water flow year-round. Temperatures can drop well below freezing at night, even in summer.

Power Plan

Solar PV: Due to the short, clear summer days and thinner atmosphere (which allows more direct sunlight (www.moserbaersolar.com)), a south-tilted solar array is still useful. We might install 5 panels of 300 W (1.5 kW), yielding roughly 6–7 kWh on a good midsummer day, but perhaps only 1–2 kWh in midwinter. A tilt >45° helps snow slide off. Panels should be kept clean of snow; even a few millimeters of frost or snow drastically cut output.
Wind: High ridges can be very windy. A small 400 W wind turbine on a 6–9 m mast could generate a few kWh/day in windy conditions, especially in winter when PV is weakest. Its output is highly variable, so it mainly keeps batteries topped in storms.
Hydro: Tap the snowmelt-fed creek with a micro-hydro turbine (e.g. a 12 V, 500 W Pelton wheel). Even 100–200 W continuous can add ~2–5 kWh/day. A buried intake pipe keeps water flowing in winter (pipes should be drained or insulated to avoid freeze). Flow and head will vary seasonally (higher in spring, lower in late summer).
Battery Bank: Cold reduces battery capacity (lead-acid loses ~50% capacity at 0 °F (widetempbatteries.com)), so use a large, cold-rated bank. For a family using ~5–10 kWh/day, plan for ~30 kWh usable storage (e.g. 48 V, 600 Ah LiFePO₄) so that 15 kWh/day usage requires only ~50% depth of discharge. The battery box can be insulated or heated (e.g. by waste heat) to keep it above 0 °C; otherwise capacity and charging ability drop sharply (widetempbatteries.com) (pluginhighway.ca).
Backup Generator: A propane or diesel generator (~3–5 kW) provides emergency power when renewable sources dip (e.g. multi-day storm or winter). Store enough fuel onsite for at least a week of intermittent use. A manual charging device (12 V battery charger) can also trickle-charge the battery from the generator’s 12 V output if needed.

In sum, the power system might be: 1.5 kW PV + 0.4 kW wind + 0.5 kW micro-hydro, feeding into a 48 V 30 kWh battery bank, with a 3 kW generator backup. This setup can produce ~15–20 kWh on a good summer day, enough for critical loads (lights, pump, small fridge), and perhaps only 2–5 kWh/day in deep winter.

Water Treatment Stack

Source: Water is gravity-fed from the pristine alpine lake/stream into a heated holding tank inside the cabin to prevent freezing. A small 12 V pump (200–400 W) lifts lake water through filters into a 50–100 cm deep cistern (200–400 L) of treated water. In winter, the intake must be below the ice line; we insulate the pump or place it in a heated pit.
Filtration: Multi-stage purification is crucial for surface lake water (offgridcollective.co). We recommend at least:

• A 5–10 micron sediment filter to remove sand, silt, and larger organic debris.
• A 0.1–0.2 micron ultrafiltration (UF) membrane or ceramic filter to remove bacteria and protozoa (cryptosporidium, giardia).
• A UV sterilizer at the end, powered by the 12 V system, to inactivate viruses and any remaining pathogens. With clean pre-filters, a 12 V UV lamp (<20 W) can safely treat daily use on the order of 100–200 L/day (meeting WHO criteria) (offgridcollective.co). Energy draw is minimal (e.g. 5–10 W continuous while pumping).
  Optionally, a small bleach or iodine dispenser can add extra safety in winter if UV is offline (propylent bleed can damage pipes if left too long, so use sparingly).
  Storage: A 200–400 L stainless or food-grade poly tank inside the insulated cabin stores treated water at pressure (~2 bars). Pipe minimal distance to taps to avoid freezing. Plumbing should use indoor-grade piping or be deeply buried/insulated.

Graywater Strategy

Disposal: Kitchen sink and shower wastewater (no toilet waste included) can be reused seasonally. In summer, route greywater to an outdoor drain field or vegetated swelling bed downhill from the house. The alpine forest soil is rocky but could absorb limited greywater; a mulch basin (shallow pit filled with mulch and gravel) planted with shrubs can filter and evaporate it. In winter, when soil is frozen, switch valves to route greywater into an indoor tank (e.g. a 100 L drum) for later spring dispersal. This prevents pipe-freeze.
Reuse: Greywater contains food residues and detergents, so only use gentle soaps and biodegradable cleaners (washwild.com.au). We strongly recommend 100% biodegradable greywater-safe soaps and detergents (no bleach, no phosphate, no ammonia) (washwild.com.au) so that effluent can water non-edible plants without harm. If winter reservoir use is essential, that greywater could flush the toilet (with bleach pellet to kill bacteria). In dry seasons it could irrigate a small greenhouse or trees (with caution).
Capacity: Plan for ~100 L/day greywater (family usage ~2 people shedding ~150L/day; some reused for toilet or irrigation). A 1000 L seepage pit or soakbed (footprint ~2×5 m) is plenty—forest soils drain well. Baffle the pit with gravel and geotextile.

Daily Routine

• Morning: All family members wake at sunrise. Immediately they draw ~5 L from the hot water tank (gravity solar water heater or propane heater) for showers and kettle. The 12 V pump runs for ~30 min to top off the drinking water cistern (timed before battery depth falls). The solar PV is low but wind or hydro may charge the battery from overnight recharge if cloudy.
• Afternoon: Maximize tasks that need electricity. At midday, sunlight peaks so run electric cooking appliances (if used) and do laundry; the solar panels and micro-hydro charge the battery heavily. The UV filter runs whenever water is needed. With better mid-day power, gadgets like laptops or lights for reading can be used without running down batteries.
• Evening: Load drops as the sun sets. Lights (LED) come on only in critical rooms, powered by the battery. They cook dinner (preferably on propane stove or wood stove with electric ignition). The pump may cycle a bit more to refill water used for cooking. Family showers (taking heat from wood stove or solar thermal). Greywater (from washing and bathing) is diverted to the auxiliary tank indoors if freezing is coming, or to the mulch bed. By 10 pm all major loads are off; the battery is usually 80–90% full.
• Night: Nighttime is mostly lights and charging nothing major. The generator stays off unless the battery was critically low. The solar PV may still trickle-charge briefly after dusk at higher altitudes.

Expected Failures & Contingencies

• Solar Shortfall: Heavy storms or winter clouds can drop PV output to near zero. Contingency: Rely on micro-hydro and wind (if running), plus the large battery reserve. Keep the generator fueled as a last resort.
• Cold-related Battery Loss: Below about 0 °C, battery output plummets (widetempbatteries.com). Contingency: Insulate/heat battery. If batteries freeze (below –20 °C), cell damage or electrolyte freezing can occur (pluginhighway.ca), so always bring the charge controller offline if it’s too cold or heat the battery bank (even small heat strips).
• Pump/Ice Blockage: The intake or pipes may ice up. Contingency: Rapidly shut off pump, switch intake to a heated sump, or manually melt ice. Keep a spare manual hand pump or buckets as absolute backup to fetch water.
• Water Contamination: If filters clog or UV lamp fails, bacteria (from birds) could infect water. Contingency: Boil water or add 1–2 ppm chlorine bleach as emergency disinfectant. Carry spare filter cartridges and UV bulbs. Regularly test water when possible.
• Frozen Graywater Lines: If freeze-thaw cycles destroy pipes or soak pit, backups include shutting the greywater system (direct it all to holding tank).
• Generator Failure: Always have spare generator parts, or a second small “beehive” generator (12 V alternator style) for charging in a pinch.

Case Study 2: Forested Northern Lake

Setting

A wooded lake in a boreal climate (e.g. northern Minnesota). The canopy of pines and spruces shades rooftops; summer brings nearly daily rain and mosquitoes; winters are cold but shorter than alpine. Plenty of water is available (rain barrels fill often), but intense bugs and forest debris are major nuisances.

Power Plan

Solar PV: Light filtering through trees means low insolation – perhaps 2–3 peak sun hours in summer. We install 10 panels of 300 W (3 kW) on a clearing or roof (with periodic trimming of branches). In summer this can yield ~10–12 kWh/day; in winter maybe 3–4 kWh. Panels should be protected with mesh or coatings to slow moss/leaf buildup, but manual cleaning after storms is necessary.
Wind: Forest wind is buffered, but open lake areas can give 4–5 m/s winds regularly. A 1 kW tower-mounted turbine (10 m high) can produce a few kWh on windy days, especially fall/winter storms when storms blow through. This supplements solar and charges batteries unused by the solar at odd times.
Hydro: If the lake has an outflowing creek, a small 0.5–1 kW hydro turbine captures continuous power (~12–24 kWh/day if flow is steady). With rain, the stream flow is generous; even a ^1⁄2 m head can drive a turbine. Since water is plentiful, clogging of the intake by leaves is the main worry – install a coarse debris screen.
Battery Bank: With ~4 people living actively, daily use might reach 15–20 kWh (lights, pump, fridge, kitchen). We pick a 48 V 400 Ah (≈19 kWh) LiFePO₄ bank, targeting ~9 kWh usable (50% DoD). Fast-acting surge loads (e.g. washing machine) should have an inverter that can double 5–10 kW. A larger bank (or an extra small bank) ensures rainy weeks don’t kill power.
Backup Generator: A small diesel or propane genset (around 5 kW) for dryers or furnace. This can also heat a water tank via a heat exchanger, using any surplus to keep batteries warm. Store fuel for a month since storms can be frequent.

Water Treatment Stack

Sources: Two sources are used interchangeably: a roof catchment (rain) and the lake. A sloped metal roof (with mesh guards on gutters) fills 5×200 L barrels during spring/summer rains. We also pipe lake/stream water to a settling tank via distance (~50 m uphill pump).
Filtration: Because forest lakes can harbor algae, bacteria, and organic acids, we use a multi-barrier system (offgridcollective.co). Typical stack:

• Sediment pre-filter (50 μm) – traps pine needles and grit.
• Activated carbon filter – removes organics and improves taste. (This is helpful for tannins from decaying litter in forest water.)
• Microfilter (0.2 μm UF) – for bacteria/protozoa.
• UV sterilizer – in a well-lit location, killing viruses and any remaining germs (offgridcollective.co).
  Rainwater may be slightly acidic, so we test pH; if needed, lime dosing raises pH. Both sources go through the same filters before entering a main 1000 L tank. A float valve prevents backflow.
  Storage and Pumps: A single 1000 L tank supplies a 12 V pump. Frequent pumps (2–3× per day) maintain pressure. We also attach a small solar element to keep tank water from freezing in winter (and to kill Legionella). Tank covers are mosquito-proof (screened vents and sealed lids) to prevent breeding (content.ces.ncsu.edu) (content.ces.ncsu.edu).

Graywater Strategy

Recycling: In this wet climate we aim to reuse as much greywater as practical. Shower, laundry, and kitchen greywater (minus any bleach) is piped to a constructed muskmelon bed just outside. The bed is a shallow trench on a mild slope, filled with mulch and hardy plants like sedges or willow cuttings, which take up water. Typical flow (100–150 L/day) soaks happily in rainy seasons.
Loosely Contained: A geotextile-wrapped gravel bed (4×4 m) acts as a “biofilter.” Water percolates slowly; roots and microbes break down soap. Once per year it dries out/oxygenates.
Safe Soaps: We use only greywater-safe soaps and shampoos (no bleach or ammonia, no harsh dyes) (washwild.com.au). For example, laundry uses biodegradable powder, showers use gentle liquid soap. This ensures that the plants and soil aren’t harmed by detergents (washwild.com.au).
Overflow: If inflow exceeds the bed capacity (major rains), excess is diverted to a small holding pond fenced from wildlife. The pond is lined with peat to avoid groundwater contamination, and drained monthly with a leach field.

Daily Routine

• Morning: Light use of lighting/lanterns. Children fetch 10–20 L of stored water from tanks (with the pump on auto-shutoff at ~2 bar). The solar panels and hydro crank up; we run the 12 V pump to top off hot water (heated by propane) for showers and morning tea.
• Midday: House is occupied full tilt. Kitchen runs on PV – the electric refrigerator, any cooking stove, and a laptop (on hours). Do laundry after noon – the washing machine (12 V inverter) and dryer (propane or wood) use stored solar. We charge devices and do projects then, when solar/wind are strongest.
• Afternoon/Evening: After 4 pm, PV wanes. We start woodstove for heat. Rotate usage: lights are limited, fridge on economy mode. Dinner prep on propane or wood stove. Greywater from kitchen and bath goes to the filter bed. Late evening shows maybe run on generator (if battery is low, it quietly recharges bank and warms water).
• Night: Lights are only on for short reading or tasks. Most appliances are off. The battery (having been charged by sun/wind/hydro during day) supplies minimal loads overnight.

Expected Failures & Contingencies

• Overcast Weeks: In constant rain, solar can drop to <1 kWh/day. Solution: Rely on micro-hydro (ponded water ensures flow) and large batteries. Turn off non-critical loads (e.g. heating water with generator only when needed). Always keep the propane generator ready.
• Heavy Wildlife/Debris in Water: Algal blooms or beaver work can foul the intake. Solution: A quick-connect bypass allows pulling water from an alternative intake or the rain tanks. Spare filters must be on hand. Boil water as emergency.
• Pump/Batt Bank Aging: Constant cycling damages batteries and pump seals. Solution: Keep a spare 12 V pump motor in the cabin. Replace battery cells every 8–10 years.
• Mosquitoes: Open water invites breeding. Solution: Tank vents and pump housings are tightly screened or use drawer-type larvicide tablets (content.ces.ncsu.edu). A head net and indoor screens are used in summer. Drain any standing water after rains.
• Filter Maintenance: The carbon and UF filters will clog faster with organics. Solution: Replace filters twice a year and backflush the UF weekly. Have a couple of gallon jugs of emergency water stored (boiled or chlorinated) for treat-up periods.

Case Study 3: Arid Reservoir

Setting

A remote stone shelter by a desert reservoir (like an oasis town). The sun is intense nearly year-round (~6–7 sun-hours/day). Rain is almost nil (maybe a thunderstorm once a year). Sand and dust storms occur, coating everything. Nights can be cool but days approach 40–45 °C in summer. Water comes from the reservoir (fresh, but warm and silty after windstorms).

Power Plan

Solar PV: This site’s best resource is solar. We mount 20 high-efficiency 400 W panels (8 kW) on the roof and nearby ground racks, optimized for winter/summer sun angle. At 6 sun-hours, 8 kW yields ~48 kWh/day – way above the 10–20 kWh/day needed (lights, fridge, fans, pump). We will use surplus to charge an electric vehicle or run heavy loads. Panels must be cleaned of dust weekly to prevent ~20–30% loss; consider an automated wiper or periodic spray system.
Wind: Desert winds are inconsistent (mostly midday/thunderstorms, plus chill nights). A 300 W high-durability turbine can add a few kWh on windy days (it helps chip away battery use in the evenings). However, wind can also kick up dust into gear – ensure turbine electronics are sealed.
Battery Bank: To ride out sandstorms or a dust-covered week, we install 48 V 800 Ah (≈38 kWh LiFePO₄). This covers ~3 days of consumption. LiFePO₄ is chosen for safety (thermal stability); however, high daily charge-discharge in heat will age them faster. We include a battery vent/AC or phase-change cooling box, since daytime panel currents plus ambient heat could push battery above 50 °C; sustained >45 °C accelerates permanent capacity loss (www.clodesun.com). Keeping the battery cooler (below ~40 °C) greatly extends life.
Backup Generator: Though sun is abundant, have a 10 kW diesel generator for worst-case (e.g. shifting RV coolant pump, or if evacuation is needed). Diesel stores well and can also power an evaporative cooler or AC unit in emergencies.

Water Treatment Stack

Source & Intake: The reservoir’s open intake is screened against fish and debris. Water is pumped 24/7 at a low rate (e.g. 10–20 L/min) into a ground cistern. A coarse 100 μm sediment filter traps grit. A sand/dirt deposit basin (a large settling tank) removes heavy sand/particles by slowing flow.
Filtration: Post-settling, water flows through:

• Dual media filter (sand/activated carbon) (10 μm) – removes fine sediment and organics. (Carbon adsorbs any petrochemicals or organics.)
• Ultrafiltration membrane (0.05 μm) – for bacteria and microplastics. (Reservoirs often have algae and sometimes runoff contaminants.)
• UV sterilizer (320 W high-power) – to handle ~5 m³/day at 1 mL/s, killing pathogens. Alternatively, chlorination can be used if UV fails; the climate (lots of sun) can degrade chlorine fast, so UV is preferred for potable supply. All treated water goes into a 5,000 L pressurized cistern (insulated to limit algal growth). We recirculate warm water to an attached solar water heater, improving heating. A small vent on the cistern is screened for insects (dust also blocked by 5 mm mesh (content.ces.ncsu.edu)).
  Distribution: A high-quality pump (1–2 kW, 48 V) draws from the cistern for house use. A 5 m drop to the kitchen and shower provides water pressure; minimal plumbing avoids vapor lock. Bath and kitchen faucets can be fitted with ultra-fine wicket pre-filters (50 μm) as a final safety net.

Graywater Strategy

Reuse: In the desert, water is precious. Greywater (shower, sink, laundry – but no toilet water) is fully reused on non-edible landscaping. We direct it into the courtyard bed, which is planted with native xeric shrubs (mesquite, aloe, agave) that tolerate soaps. Using greywater here almost exclusively, we cut potable water use by ~40%.
Distribution: Pipes lead greywater into a grated trench (20×1 m) filled with gravel mulch along a swale. It disperses slowly into soil. We double-line this to prevent seepage into groundwater, channeling it under the tree root zone. Greywater pH is ~7.5–8 from soap, so no soil harm.
Safe Soaps: All household cleaning agents must be extremely mild. We insist on greywater-safe products (washwild.com.au) (no bleach, minimal surfactants). For instance, we use natural soap with essential oils – any harsh chemical would kill our desert plants.
Toilets: We install a composting toilet to eliminate blackwater. (Throw-away waste is collected by a service.) Any accidental toilet flush water is minimal; otherwise, we rely on captured greywater.

Daily Routine

• Dawn: The solar array lights up quickly. Morning chores (washing dishes, watering the courtyard with last night’s greywater, preparing a cold breakfast) are timed while panels power the water heater and stove igniter. The reservoir pump is on auto, topping off the cistern due to overnight demand.
• Morning: By 9 am, the battery is fully charged. We do high-electric tasks now (laundry, charging laptops, running fans/ventilation). Windows are kept barred against heat but the morning breeze allows the wind turbine to contribute a small charge.
• Midday: We avoid heat. Activities slow down. The family rests inside (the thick walls help cool days). Panels are cleaned quickly of dust by midday (if conditions allow a brief rinse or brush) to keep output high. Dishwashing or plant watering is then done on solar.
• Evening: As the sun sets, move chores outside (birdwatching with motion lights, or using stored cold water for showers). The generator is run if needed for AC or to handle cooking loads after dark. Greywater is diverted to the courtyard bed; at night evaporation is slow, but the gravel bed still gathers it.
• Night: Only essential lighting is used (LED fixtures, solar lanterns). The battery supplies these easily. Once family sleeps around 10 pm, the system idles – the battery is largely full from a hot day’s sun.

Expected Failures & Contingencies

• Dust on Panels: A half-inch of dust can cut output up to 30% (large.stanford.edu). Solution: Install automated wipers or schedule manual cleaning after storms. Keep a pressure-washer handy. A secondary array tilt shaking snow also sheds dust.
• Battery Overheat: The battery box can reach >60 °C in midday if not ventilated. Solution: Use phase-change cooling packs or a small AC vent. Always place batteries in shade; never charge/discharge above 45 °C or you lose capacity (www.clodesun.com). If overheating occurs, shut off charging and rely on backup generator/propane.
• Pump Breakdown: Fine sand can wear pump seals. Solution: Install a pre- sand trap (settling basin) that is cleaned monthly. Keep a manual hand pump to draw from cistern if the electric pump fails.
• Sterilizer Failure: UV bulbs burn out. Solution: Keep extra bulbs on hand. If UV is offline, add household bleach (sodium hypochlorite) at 1 mL per liter as a stopgap disinfectant (water clarity must be high for UV to be effective).
• Extreme Heat Illness: In case of air-conditioning failure, have shade cloths and misting fans. The generator can power an evaporative cooler as emergency (though these use lots of water).

Comparative Lessons and Adaptable Template

Lessons: Each climate demands a different mix of resources. In the alpine case, reliability trumped abundance – we leaned heavily on wind and micro-hydro to offset short winter days, and insulated systems for freezing. In the rainy forest, water was plentiful but sun was not, so we used every drop twice and added wind/hydro backup. In the desert, solar reigned supreme, but dust and heat created their own maintenance chores. Across all three, however, common principles emerged:

• Balance supply and demand: Oversize generation to cover worst days; for example, aim to recharge the battery bank in one sunny day (www.anernstore.com).
• Store for lean times: Batteries and water tanks must hold 2–3+ days of use, since weather is unpredictable. (Solar-based villages often keep 3 days of autonomy even before setting up a generator.)
• Multi-stage water treatment: Always include sediment pre-filters, fine filters/UF, and disinfection for lake/stream water (offgridcollective.co). No single step is enough.
• Reuse greywater: In wet climates it’s a nuisance, in dry climates it’s a lifeline – but in any case it must be free of toxic chemicals (washwild.com.au). Designing the plant beds or infiltration fields in advance is key.
• Expect and mitigate failures: Each environment had obvious weak points (frozen pipes, mosquitoes, dust, salt spray, animals). Anticipate the local issue and build in redundancy (e.g. backup filter cartridges, sealed tanks, screens, solar panels on spring hinges to shake snow/dust).

Adaptable Design Template: Readers planning their own remote shoreline system can follow a stepwise framework:

1. Assess Climate & Resources: Note sun hours, wind patterns, water availability, flora/fauna issues.
2. Estimate Loads: Calculate daily kWh and water use per person (e.g. ~150–250 L/day/person including basic household needs (sunpumps.com)). Include any gardening or livestock.
3. Choose Generation Mix: Allocate solar (PV) capacity using local sun data, plus consider wind or hydro if available. Ensure PV can recharge batteries from empty in one average sunny day (www.anernstore.com).
4. Size Storage: Plan batteries for at least 2–3 days of autonomy (e.g. size = Load × Days / Depth-of-Discharge) and water tanks similarly (often 3–7 days of water supply). Use insulation or heating if cold is an issue (widetempbatteries.com), or cooling ventilation if extreme heat (www.clodesun.com).
5. Design Water Purification: Use staged filtration. For lakes/streams, include sediment (50–100 μm), carbon filters, microfiltration/UF (0.1–0.2 μm), and UV or chemical disinfectant (offgridcollective.co). Always cover tanks to block insects and debris (content.ces.ncsu.edu) (content.ces.ncsu.edu).
6. Plan Greywater Reuse: Decide if you’ll irrigate plants or use soak pits. Build appropriate beds or sand pads before living there. Only use biodegradable, greywater-safe soaps (washwild.com.au).
7. Routine & Redundancy: Establish daily routines that maximize generation (e.g. do laundry when solar is up). Identify single points of failure (e.g. only one pump) and add backups (extra pump, spare panels, manual generation). Train occupants to monitor system health (e.g. battery voltage, water clarity).
8. Fail-Safe Protocols: Have emergency procedures: how to boil/treat water if filters fail, operate a backup generator if batteries die, move animals away if threatening the system. Maintain an emergency cache of water bottles, fuel, and parts.

By working systematically through these steps – as illustrated by our three lake scenarios – any off-grid lakefront project can be designed to be robust, climate-appropriate, and long-lasting.
